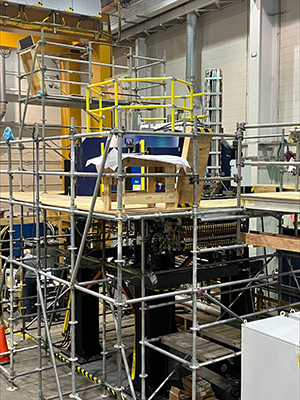

Best 35p Cyclotron
The Best 35p is a 35 MeV proton cyclotron. It is designed to produce radioisotopes
using the (p,2n) or the (p,3n) reaction. There is a broad range of single photon emitters that
are used in nuclear diagnostic imaging and therapy that are accessible in this energy domain.
TeamBest® will partner with the end user to create a facility
that will satisfy the end user's requirements and provide some of TeamBest's radioisotope supply
requirements. Both solid and gas target systems can be added to the Best 35p system.
External Production Targets
The cyclotron is supplied with high current solid target stations and high current
gas target stations.
Features
Type of Cyclotron
- Negative hydrogen ion (H-)
- External ion source, multi-cusp 15 mA
- Simultaneous dual beam extraction (multiple foil extraction cartridge)
- Custom design beam line configuration (4 to 6 beam lines)
Beam Current
- 800 µA, combined beam current
- Higher currents available (1000 µA)
Beam Energy
- 35 MeV fixed energy extraction
Magnet
- Magnet coil: ˜101 kAT
- Weight: ˜50 tons
- Geometry: 4 sector, deep valley
RF System
- Resonator: 2 Dees
- Dee Voltage: 60 kV
- RF frequency: 65 MHz, 4th harmonic
- Power required: 22 kW (nominal)
- Energy gain per turn: 240 keV
Vacuum System
- Base Pressure: <1 x 10−7 Torr
- Operating Pressure: <2 x 10−7 Torr
- Pumps: Cryogenic pump system
Automated Control System
- Computer system: Standard PC, Windows−based OS
- Controllers: Siemens Industrial PLC Modules
- User console: Color monitor
- Interface: Graphical user interface
- Networking: Standard thin-wire Ethernet hardware
