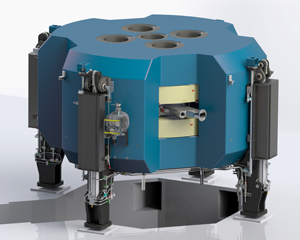

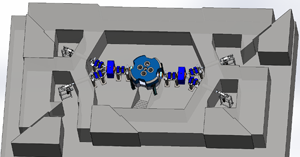

BEST 35p Cyclotron - specifications
Type of Cyclotron
Negative hydrogen ion (H-)- External ion source
- Simultaneous double beam extraction
- Custom design beam line configuration
(4 to 6 beam lines)
Beam Current
- 1 mA, combined beam current
Beam Energy
- 15 to 35 MeV variable energy extraction
Magnet
- Magnet coil
................................................ ~98 kAT
- Magnet weight
.......................................... ~55 tons
- Geometry
................................................... 4 Sector
RF System
- Number of Dees
....................................... 2
- Dee Voltage
............................................... 50 kV
- RF frequency
............................................. 70 MHz, 4th harmonic
- Power required
......................................... 22 kW (nominal)
- Energy gain per turn
................................. 200 keV
Vacuuum System
- Ion source
................................................... <1 x 10-5 Torr
- Main tank
..................................................... <5 x 10-7 Torr
- Pumps
......................................................... 2 cryo pumps
Control System (Automated)
- Computer system
...................................... Standard PC, Windows XP
- Controllers
.................................................. Siemens Industrial PC Modules
- User console
.............................................. Color Monitor
- Interface
....................................................... Graphical user interface
- Networking
.................................................. Standard thin-wire ethernet hardware
External Production Targets
The cyclotron is supplied with high current solid target stations and high current gas target stations.
